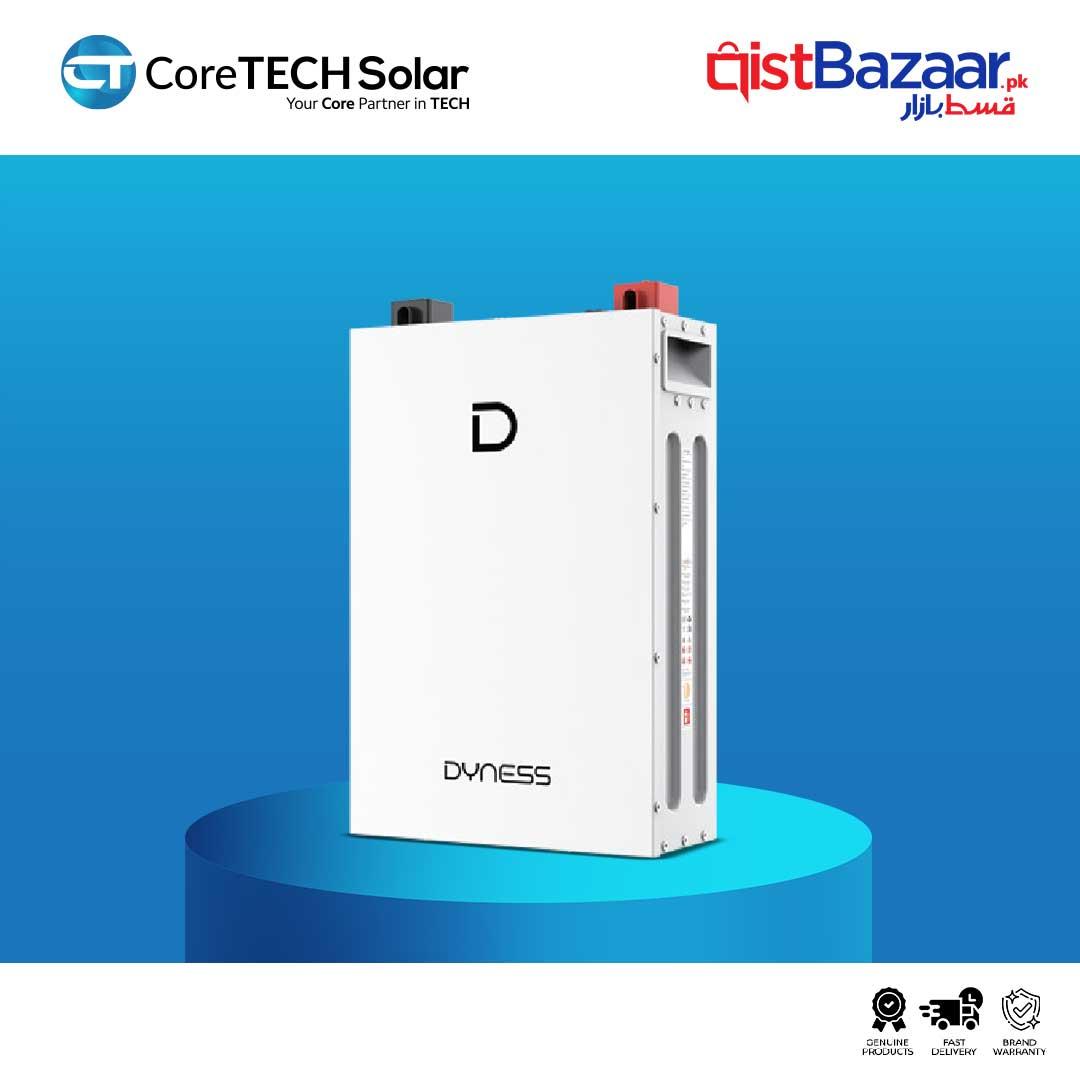

Dyness DL5.0F 5.12kWh 51.2V – 100Ah IP20 Lithium-ion Battery on easy monthly installments. Low Down-Payment with Company Warranty and FREE & Fast Delivery. Choose your installment plan at the best price in Pakistan now !
| Feature / Parameter | Specification |
|---|---|
| Battery Type | Lithium Iron Phosphate ($\text{LiFePO}_4$) |
| Nominal Capacity | 100Ah |
| Nominal Voltage | 51.2 VDC |
| Nominal Energy | 5.12 kWh |
| Usable Energy (95% DoD) | ~4.86 kWh |
| Cycle Life | 8,000+ Cycles (at 25°C, 0.2C charge/discharge, 95% DoD) |
| Max Charge / Discharge Current | 75A (Max Charge) / 100A (Max Continuous Discharge - 1C) |
| Operating Voltage Range | 44.8 V – 57.6 V |
| Communication Protocols | CAN / RS485 |
| Protection Rating | IP20 (Indoor Installation) |
| Parallel Expansion | Up to 50 Units in Parallel (Scalable from 5.12 kWh up to 256 kWh) |
| Dimensions (W x D x H) | 345 × 548 × 146 mm |
| Net Weight | 41 kg |
