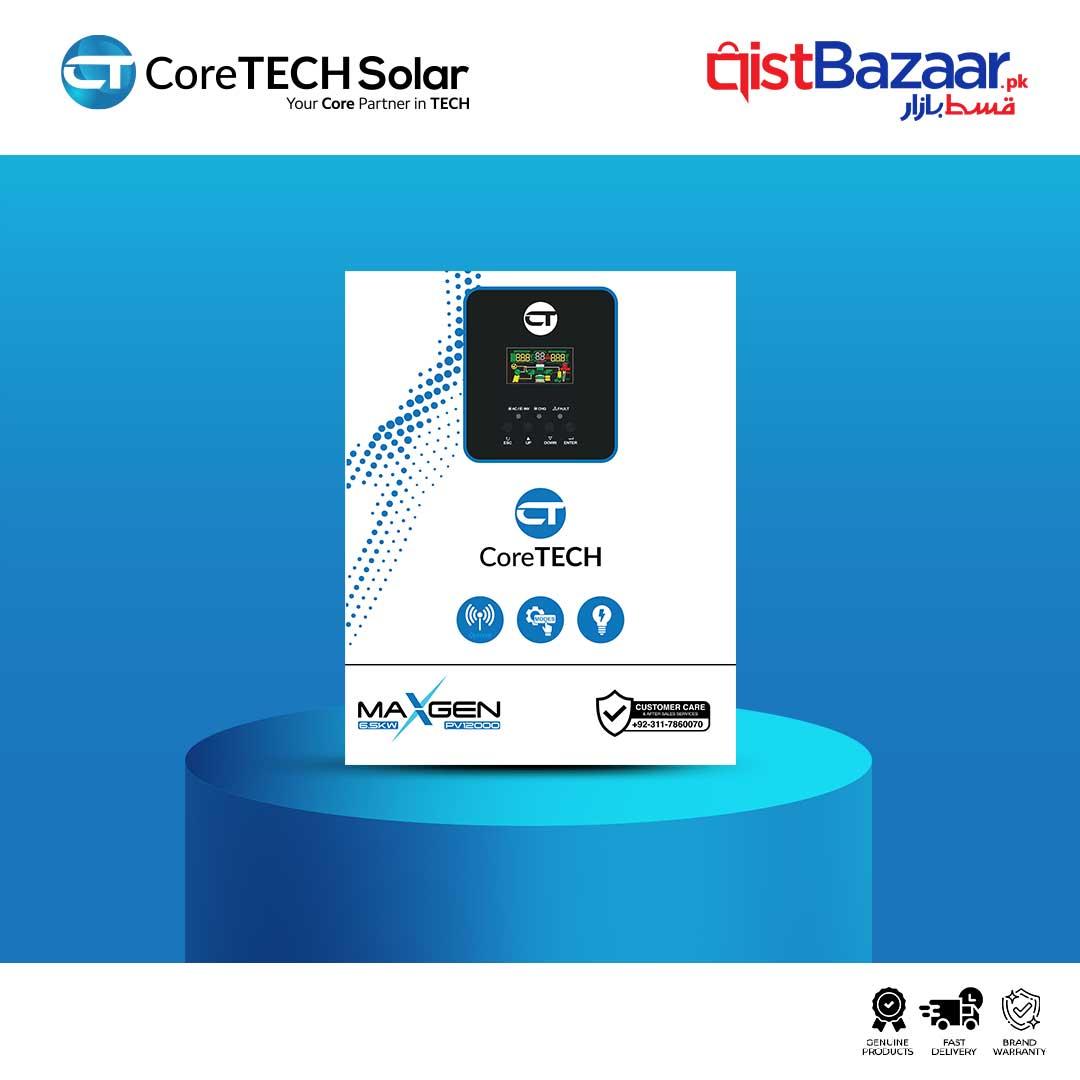

Buy CoreTECH MaxGen PV12000 6.5KW PV Solar Inverter on easy monthly installments. Low Down-Payment with Company Warranty and FREE & Fast Delivery. Choose your installment plan at the best price in Pakistan now !
CoreTECH Solar| Model | 6.5KW |
| Inverter Model: | |
| Input Voltage Waveform | Sinusoidal (utility or generator) |
| Nominal Input Voltage | 230Vac |
| Low Loss Voltage | 170Vac±7V (UPS); 90Vac7V (Appliances) |
| Low Loss Return Voltage | 180Vac±7V (UPS); 100Vac±7V (Appliances) |
| High Loss Voltage | 280Vac±7V |
| High Loss Return Voltage | 270Vac±7V |
| Max AC Input Voltage | 300Vac |
| Nominal Input Frequency | 50Hz / 60Hz (Auto detection) |
| Low Loss Frequency | 40±1Hz |
| Low Loss Return Frequency | 42±1Hz |
| High Loss Frequency | 65±1Hz |
| High Loss Return Frequency | 63±1Hz |
| Output Short Circuit Protection | Circuit Breaker |
| Transfer Time | 10ms typical (UPS); 20ms typical (Appliances) |
| Grid Connection Voltage (Open Anti-islanding protection) | 190Vac-253Vac |
| Grid Connection Frequency (Open Anti-islanding protection) | 50Hz / 47.5Hz-52.5Hz; 60Hz/ 57.5Hz-62.5Hz |
| Rated Output Power | 6.5KW |
| Maximum PV Input Power | 6000KW+6000KW |
| Output Voltage Waveform | Pure Sine Wave |
| Output Voltage Regulation | 230Vac±5% |
| Output Frequency | 50Hz/60Hz |
| Overload Protection | 105%~110%: 30s; ≥110%: 10s; ≥150%: 1s |
| Surge Capacity | 2 x rated power for 2 seconds |
| No Load Power Consumption (LINE MODE) | < 10W |
| MAX. PV Input Voltage | 500Vdc |
| Start-up Voltage | 120Vdc |
| MPPT Voltage Range | 70Vdc-400Vdc |
| Rated PV Input Voltage | 370Vdc |
| Max. Operating PV Input Current | 18A+18A |
| Safety Certification | CE |
| Operating Temperature Range | -10°C to 55°C, >45°C Derating |
| Storage Temperature | -15°C-60C |
| Humidity | 5% to 95% Relative Humidity (Non-condensing) |
| Dimension (D×W×H), mm | 335.5 x 245×103 |
| Net Weight, kg | 4.5 |
