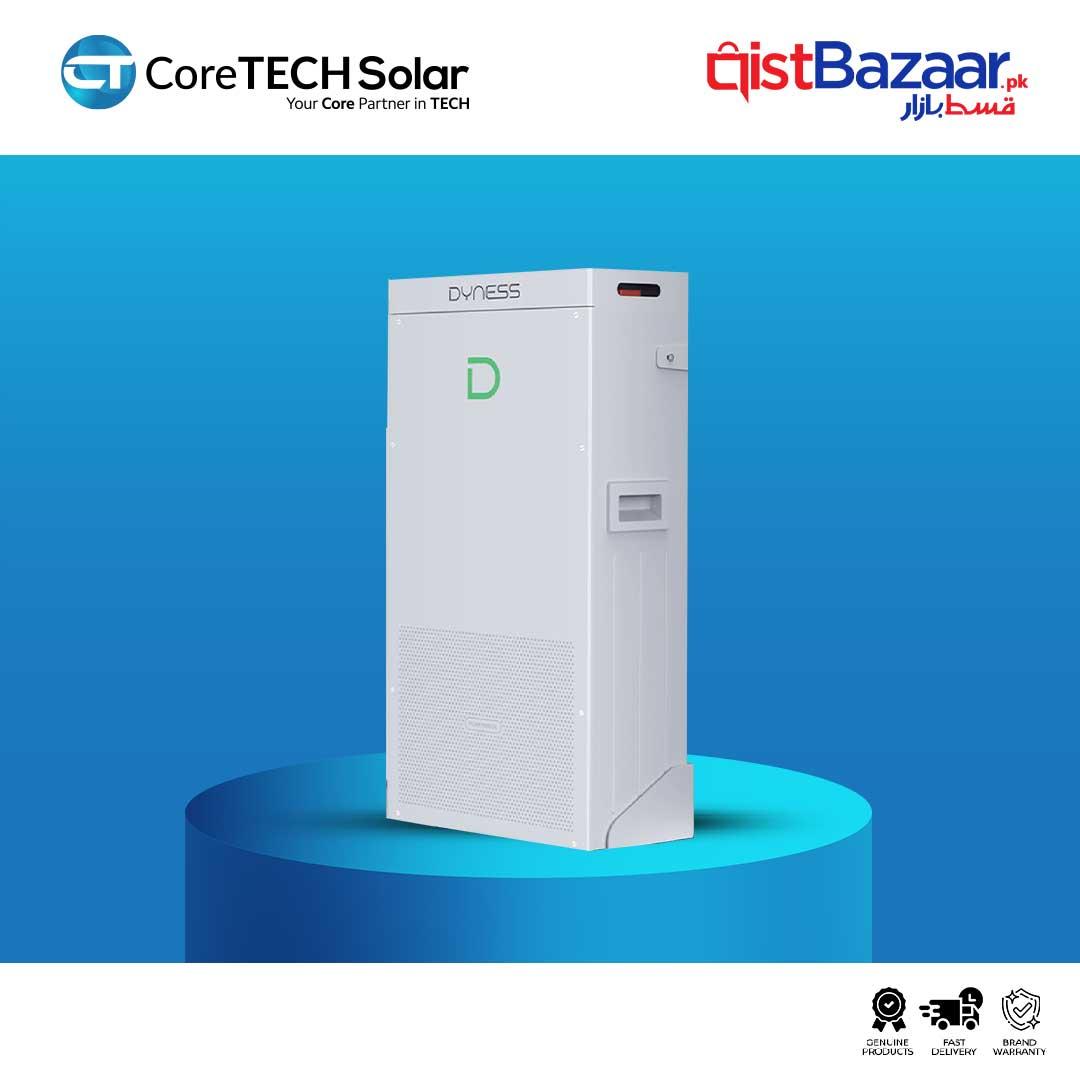

Buy Dyness PowerBrick Max 16.07kWh 51.2V – 314Ah IP20 Lithium-ion Battery on easy monthly installments. Low Down-Payment with Company Warranty and FREE & Fast Delivery. Choose your installment plan at the best price in Pakistan now !
CoreTECH Solar| Specification: | |
| Model | PowerBrick Max |
| Battery Type | LiFePO4 (LFP) |
| Nominal Battery Energy | 16.076kWh |
| Usable Battery Energy | 15.272kWh |
| Nominal Capacity | 314Ah |
| Nominal Voltage | 51.2V |
| Operating Voltage | 44.8V~57.6V |
| Recommended Charge & Discharge C Rate | 0.45C (140A) |
| Max. Charge C Rate | 0.64C (200A) |
| Max. Discharge C Rate | 0.64C (200A) |
| Peak Discharge Current (25°C) | 300A, 2min |
| Recommended Charge & Discharge Power | 7.168kW |
| Max. Charge Power | 10.24kW |
| Max. Discharge Power | 10.24kW |
| Depth of Discharge (DOD) | 95% |
| Charge Temp. Range | 0°C~55°C / -20°C~55°C (optional) |
| Discharge Temp. Range | -20°C~55°C |
| Net Weight | 116kg |
| Dimension [W/D/H] | 435/233/857mm |
| Protection Level | IP20 |
| Communication | CAN/RS485 |
| Cycle Life | ≥8000 Cycles |
| User Interface | WIFI+APP |
| Safety Protection | Built-in aerosol fire extinguisher |
| Installation | Floor-mounted, Wall-mounted |
| Regulating Wheel (4pcs) | 1kg, 80/80/80 (optional) |
| Top Cover | 2kg, 422/232/60 (optional) |
| Expansion | Up to 50 units in parallel |
| Certification & Safety Standard | UN38.3 / IEC62619 |
| Compatible Inverters | SMA / Victron Energy / Ingeteam / Solis / GoodWe / Growatt / Solplanet / Luxpower / Deye / Apsystem etc. |
| Warranty | 7 Years |
