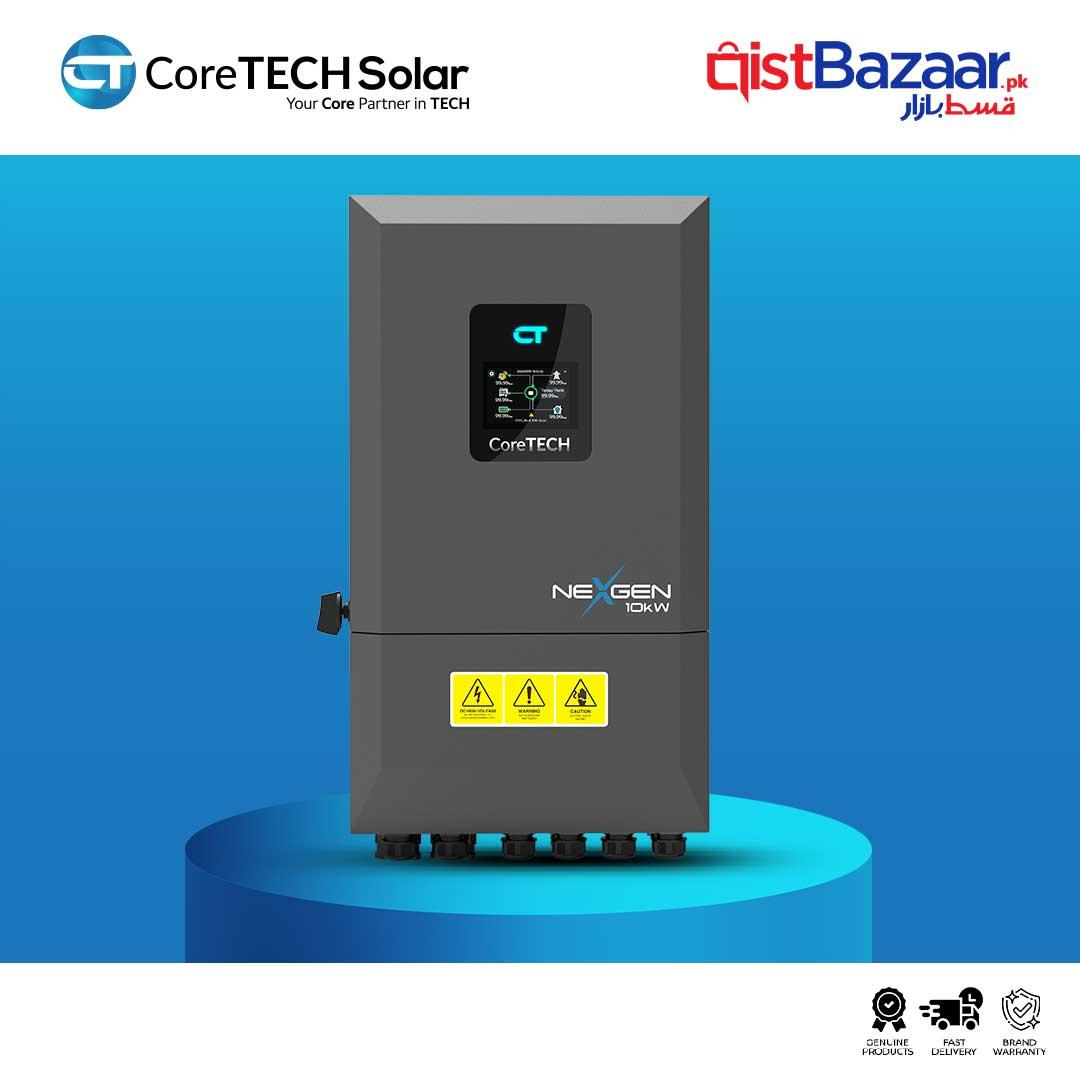

Buy CoreTECH NexGEN Pv20000 10kW Hybrid Inverter on easy monthly installments. Low Down-Payment with Company Warranty and FREE & Fast Delivery. Choose your installment plan at the best price in Pakistan now !
CoreTECH Solar| MAX. PV access power | 20000W |
| Max. PV input power | 15kW |
| Max. input voltage | 550V |
| Rated PV input voltage | 360V |
| Start-up voltage | 60V |
| MPPT voltage range | 90-450V |
| Max. PV input current | 32A/32A |
| Max. short circuit current | 40A/40A |
| MPPT number/Max. input strings number | 2/4 |
| BATTERY | |
| Battery type | Lead-acid or Li-ion |
| Rated battery voltage | 48V |
| Battery voltage rang | 40-60V |
| Max. charge / discharge current | 210A/210A |
| Communication | CAN/RS485 |
| Charging strategy for Li-ion battery | Self-adaption on to BMS |
| AC OUTPUT | |
| Rated output power | 10kW |
| Max. apparent output power | 11kVA |
| Rated output voltage | 220V/230V,L/N/PE |
| Output voltage range | 160V-300V |
| Rated output frequency/frequency range | 50Hz/60Hz (±5Hz) |
| Rated output current | 43.5A |
| Max.output current | 47.8A |
| power factor | >0.99(0.8 leading - 0.8 lagging) |
| THDi | <3% |
| AC INPUT | |
| Rated input power | 10kW |
| Max. input power | 11.5kW |
| Rated input voltage | 220V/230V,L/N/PE |
| Rated input frequency | 50/60Hz |
| Max. input current | 50A |
| BACK-UP OUTPUT | |
| Rated output power | 10kW |
| Max. output power | 2 mes of rated power, 10 s |
| Rated output voltage | 220V/230V,L/N/PE |
| Rated output frequency | 50/60Hz |
| Max. output switch me | 43.5A |
| Back-up switch me | <4ms |
| THDv | <3% |
| EFFICIENCY | |
| MPPT efficiency | 99.80% |
| Max. efficiency | 97.70% |
| EU efficiency | 96.70% |
| BAT charged/discharged Max efficieny | 95.3% / 93.9% |
| PROTECTION | |
| Integrated DC switch | Yes |
| DC rever-polarity protec on | Yes |
| Insula on impedance detec on | Yes |
| Residual leakage current detec on | Yes |
| Ground fault monitoring | Yes |
| Short circuit protec on | Yes |
| An -islanding protec on | Yes |
| DC/AC surge protec on | DC:Type ll;AC:Type ll |
| DC arc-fault circuit protec on | Optional |
| I/V curve scanning | Yes |
| Parallel connec on number of inverter | Max.16 |
| GENERAL | |
| Opera ng temperature range | -40 to 60°C |
| Max. opera on al tude | 4000m(Dera ng above 3000m) |
| Rela ve humidity | 0~100% |
| Cooling concept | Smart Fan Cooling |
| Ingress protection | IP 66 |
| Topology | Transformerless |
| Self consump on(night) | ≤20W |
| Dimensions (W*H*D) | 350*620*260mm |
| Weight | 28kg |
| Type of PV terminal | MC4 connector |
| Type of PV terminal (Grid side) | Terminal |
| Warranty | 10 Years* |
| COMMUNICATION | |
| Display | LCD+LED+Bluetooth+APP |
| Communication | WIFI+Bluetooth,Op onal:GPRS,LAN ;BMS:RS485/CAN |
| CERTIFICATION | |
| Grid standards | IEC 61727/62116,IEC 61683,PEA |
| Safety/EMC | IEC/EN 62109-1/2,IEC/EN 62477-1, EN IEC61000-6-1/2/3/4 |
