Buy CoreTECH | 1.6KW PV2200 | Hybrid Inverter on easy monthly installments. Low Down-Payment with Company Warranty and FREE & Fast Delivery. Choose your installment plan at the best price in Pakistan now !
CoreTECH Solar| SPECIFICATION: |
| MODEL: |

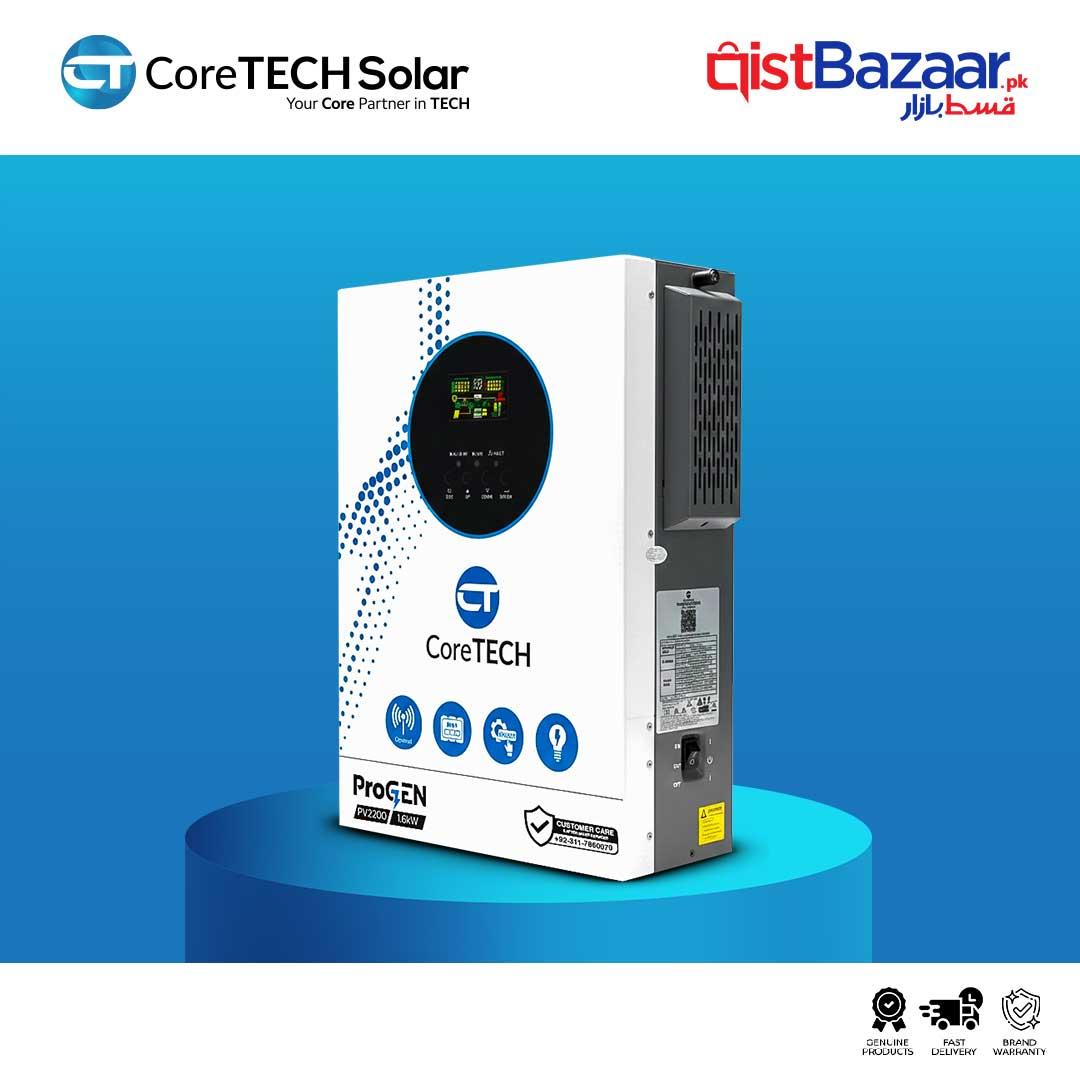

| PROGEN 1.6KW PV 2200 |
| MAXIMUM PV INPUT POWER |
| 2200W |
| RATED OUTPUT POWER |
| 1600W |
| Input Sources |
| L+N+PE |
| Rated Input Voltage |
| 220/230/240VAC |
| Voltage Range |
| 90-280VAC±3V(APL Mode)170-280VAC±3V(UPS Mode) |
| Frequency |
| 50Hz/60Hz(Auto Adaptive) |
| Rated Capacity |
| 1600W |
| 220/230/240VAC±5% |
| Output Frequency |
| 50/60Hz±0.1% |
| Waveform |
| Pure Sine Wave |
| Transfer Time (adjustable) |
| Computers(UPS Mode) 10ms ,Appliance(APL Mode )20ms |
| Peak Power |
| 3200VA |
| Peak Efficiency |
| 94% |
| BATTERY: |
| Battery Voltage |
| 12VDC |
| Constant Charging Voltage(Adjustable) |
| 14.1VDC |
| Float Charging Voltage(Adjustable) |
| 13.5VDC |
| CHARGERS: |
| PV Charging Mode |
| MPPT |
| MAX.PV Input Power |
| 2200W |
| MPPT Tracking Range |
| 30~500VDC |
| Best Voltage |
| 300~400VDC |
| MAX.PV Input Voltage |
| 500VDC |
| MAX.PV Charging Current |
| 100A |
| MAX.AC Charging Current |
| 60A |
| MAX.Charging Current |
| 100A |
| DISPLAY: |
| LCD Display |
| Display Running Mode/Loads/Input/Output etc. |
| INTERFACE: |
| RS232 |
| Baud Rate2400 |
| Communication Port |
| Lithium Battery BMS Communication Card WifiCard, Dry Contact |
| Parallel Connect Interface |
| Without Parallel Connect |
| ENVIRONMENTS: |
| Operating Temperature |
| -10~50C |
| Humidity |
| 20%~95%(Non-condensing) |
| Storage Temperature |
| -15~60C |
| Altitude |
| Altitude Not Over 1000m,Derating over 1000m,Max |
| Noise |
| ≤50db |
| Warranty : 2 Years |
| Inprogess Protection |
| IP21 |
